PEB Structure - Rajasthan

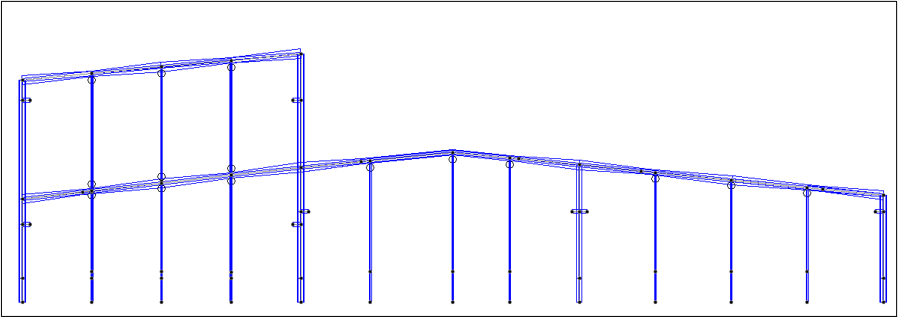

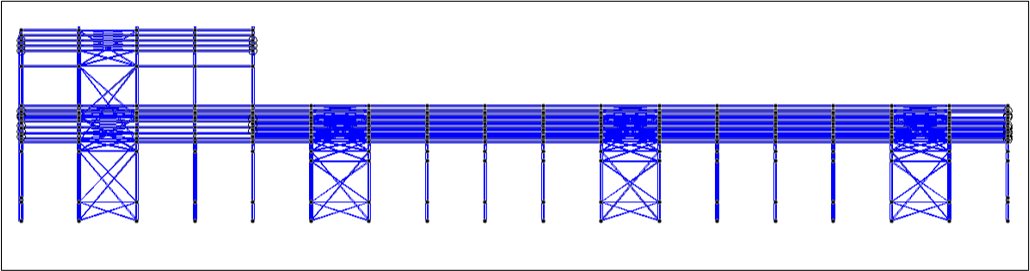

STAAD MODEL

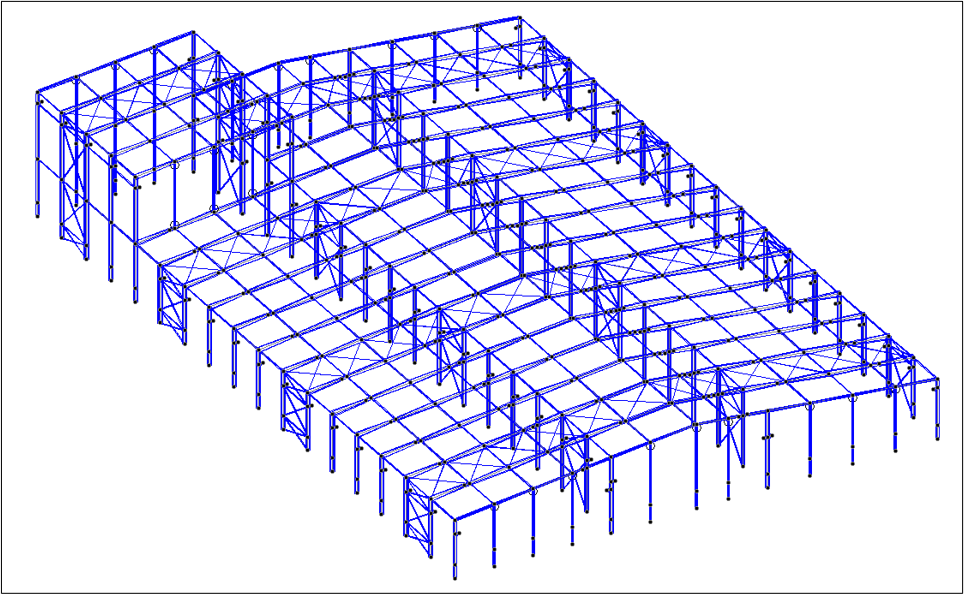

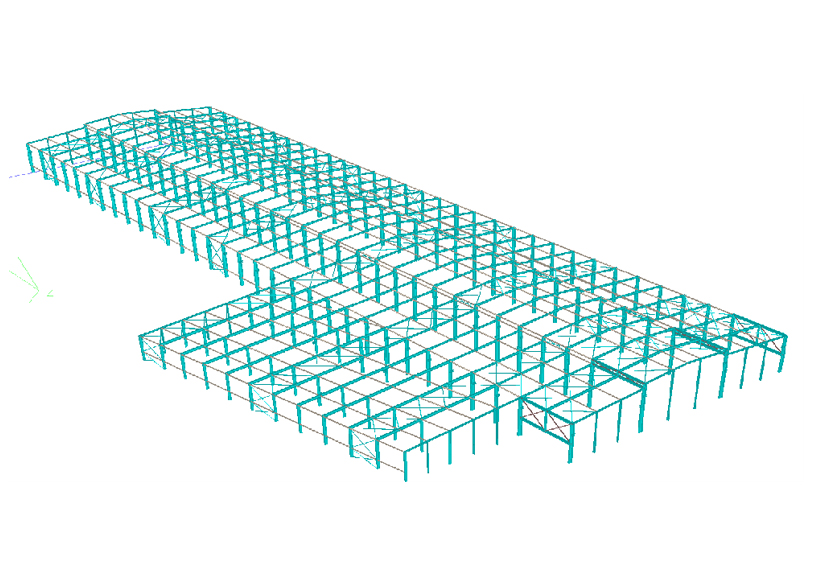

3D STAAD MODEL

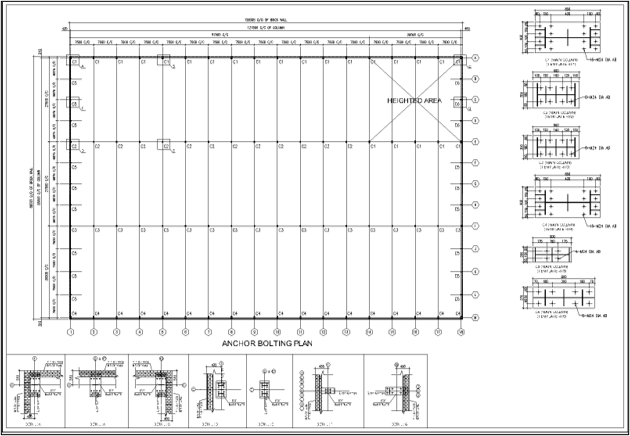

ANCHOR BOLT LAYOUT

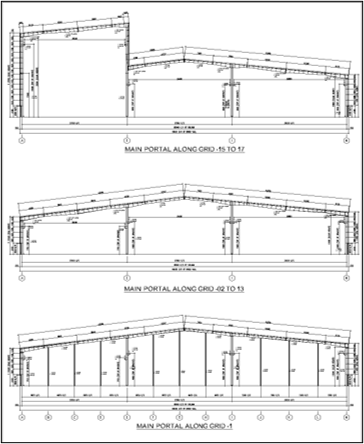

CROSS - SECTION
Let’s Build the Future Together!
At Ambica Associates, we are dedicated to delivering innovative, safe, and cost-effective structural solutions that turn your vision into reality. Whether you need structural design, consultation, or project assessment, our team is here to support you with expert guidance and advanced engineering solutions tailored to your needs.
Project Information
- Project Location: Rajasthan
- Type of Structure: PEB Structure
- Project Area: 11045 sqm
- Crane Capacity: 4 Nos – 5 MT
- Clear Height: Low Bay - 10.6 meter & High Bay – 22 meter
- Tonnage: 500 MT
- Design Code: AISC, AISI, MBMA
- Wind Speed: 47 M/S
- Seismic Zone: II
